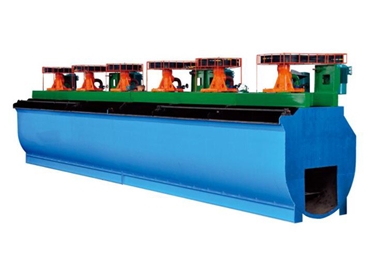

XCFII and KYFII Type Flotation Machine could have a combined configuration in which XCFII type acts as the suction tank and KYF II type as the direct current tank to save foam pump in the medium mine returning. In this way, it gives full play to the specific function of various machine types to draw the strong points and offset the weak points. The structural feature of this kind of floater is the design of a double inverted conic-shaped impeller with backward blades. Moreover, there is an air distributor set in the middle of the impeller to have advantageous performance over similar floaters.
XCFII/KYFII Type Flotation Machine Features
1. Low power consumption.
2. Good air dispersion.
3. Impeller acts as a centrifugal pump to make the solid in the tank maintain in a state of suspension.
4. Low abrasion and low maintenance cost.
5. Starting with load.
6. Low consumption of agent.
7. Simple structure and easy maintenance.
8. U-shaped tank reduces short circuit cycle.
9. Advanced ore slurry level control system has a convenient operation and management.
10.XCFII/KYFII type flotation machine unit brings horizontal configuration to the flotation operation and saves foam pump.
Main Technical Parameters
m3 | m×m×m | m | kw | KPa | m3/m2.min | m3/min | kg | |
Specification | Effective volume | Tank size length x width x height | Impeller power | Installation power | Min inlet wind pressure | Adjustment scope of aeration amount | Production capacity | Weight per tank |
XCFⅡ/KYFⅡ-1 | 1 | 1.00×1.00×1.10 | 0.4/0.34 | 5.5/4 | >11 | 0.05~1.4 | 0.2~0.5/ | 920/ |
XCFⅡ/KYFⅡ-2 | 2 | 1.30×1.30×1.25 | 0.47/0.41 | 7.5/5.5 | >12 | 0.05~1.4 | 0.5~1/ | 1158/ |
XCFⅡ/KYFⅡ-3 | 3 | 1.60×1.60×1.40 | 0.54/0.48 | 11/.7.5 | >14 | 0.05~1.4 | 0.7~1.5/ | 2172/ |
XCFⅡ/KYFⅡ-4 | 4 | 1.80×1.80×1.50 | 0.62/0.55 | 15/11 | >15 | 0.05~1.4 | 1~2/1~4 | 2375/ |
XCFⅡ/KYFⅡ-6 | 6 | 2.05×2.05×1.75 | 0.62/0.55 | 18.5/15 | >17 | 0.05~1.4 | 1~3/1~6 | 3545/ |
XCFⅡ/KYFⅡ-8 | 8 | 2.20×2.20×1.95 | 0.72/0.63 | 22/15 | >19 | 0.05~1.4 | 2~4/2~8 | 4142/ |
XCFⅡ/KYFⅡ-10 | 10 | 2.40×2.40×2.10 | 0.76/0.66 | 30/22 | >20 | 0.05~1.4 | 3~5/3~10 | 4897/ |
XCFⅡ/KYFⅡ-16 | 16 | 2.80×2.80×2.40 | 0.86/0.74 | 37/30 | >23 | 0.05-1.4 | 4~8/4~16 | 6928/ |
XCFⅡ/KYFⅡ-20 | 20 | 3.00×3.00×2.70 | 0.91/0.78 | 45/37 | >25 | 0.05~1.4 | 5~10/ | 9260/ |
XCFⅡ/KYFⅡ-24 | 24 | 3.10×3.10×2.90 | 0.93/0.80 | 55/37 | >27 | 0.05~1.4 | 6~12/ | 10819/ |
XCFⅡ/KYFⅡ-30 | 30 | 3.50×3.50×3.025 | 0.88/0.90 | 55/45 | >31 | 0.05~1.4 | 7~15/ | 14810/ |
XCFⅡ/KYFⅡ-40 | 40 | 3.80×.3.80×3.40 | 1.05 | 75/55 | >32 | 0.05~1.4 | 8~19/ | 18790/ |
KYFⅡ-50 | 50 | 4.40×4.40×3.50 | 1.03 | 75 | >33 | 0.05~1.4 | 10~40 | 22000 |
KYFⅡ-70 | 70 | 5.10×5.10×3.80 | 1.12 | 90 | >35 | 0.05~1.4 | 13~50 | 26200 |
KYFⅡ-100 | 100 | 5.90×5.90×4.20 | 1.26 | 132 | >40 | 0.05~1.4 | 20~60 | 33500 |
KYFⅡ-130 | 130 | 6.42×6.62×4.72 | 1.30 | 160 | >45 | 0.05~1.4 | 20~60 | 36200 |
KYFⅡ-160 | 160 | 6.85×7.02×5.02 | 1.35 | 160 | >48 | 0.05~1.4 | 20~60 | 42500 |
KYFⅡ-320 | 320 | 8200×6500 | 185 | >64 | 0.05~1.4 | 40-160 | 65000 |
