Product Description

Swing type feeder is suitable for mineral processing, coal, chemicals and other industrial departments. It sends particle materials from storage tank funnel to various kinds of receiving equipment. Swing type feeder is not suitable for conveying materials of dry powder or great particle sizes, or there will be dust pollution or discharge blockage. Swing type feeder is a kind of feeding equipment that sends core to the ball grinder or band conveyor. It is widely applied because of its simple structure, convenient operation, low energy consumption and the capacity of even adjustment of ore amount.

Working Principle

So long as the motor starts, the power will be conveyed to worm speed reducer through the coupler to slow down the speed. The power transmission after the speed-down could achieve adjustable eccentric wheel (the feeding amount will adjust the location of the eccentric wheel) and drives pendulum plate to make reciprocal arc movement and have a continuous cycle of opening and closing through eccentric wheel and connecting rod. Ore of the above storehouse is discharged out of the machine with a uniform velocity through inner machine and feeding opening of the feeder to guarantee the uniform feeding of ball grinder.

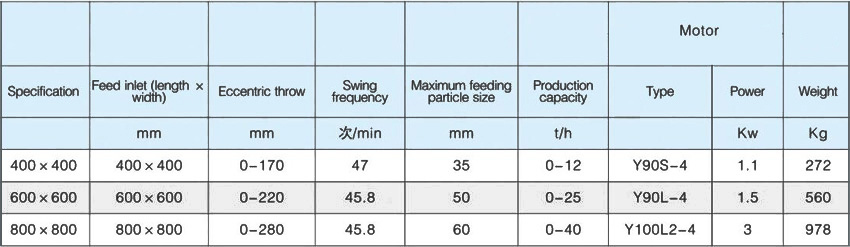

Main Technical Parameters
